XJ-P 5-10L Natural Exhaust Gas Water Heater With Tin-coated Copper Heat Exchanger

The product configuration can be customized meet the certification requirements of different markets

Natural exhaust

Product liter covers 6L~10L

Suitable for low or normal water pressure condition

Suitable for indoor and semi-outdoor environment

Tin-coated or oxygen-free heat exchanger optional

Digital display optional

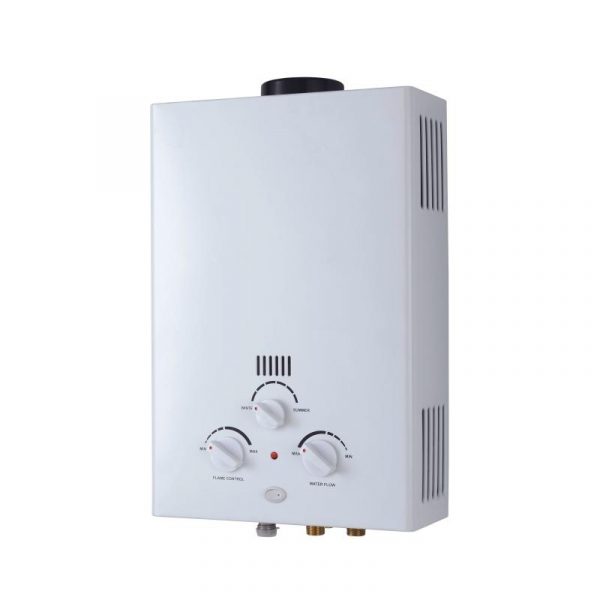

Knob of winter & summer mode, water flow adjustment optional

Multi-sensors optional

XJ-P Natural Exhaust With Harmonica-shape Burner

Technical specifications	XJ-P-6L	XJ-P-7L	XJ-P-8L	XJ-P-10L
Exhaustion	Natural	Natural	Natural	Natural
Product Dimensions (mm) HxWxD	440x300x135	520x330x170	520x330x170	550x300x185
Gas type	NG/LPG	NG/LPG	NG/LPG	NG/LPG
Rated Power Standard Condition (kW)	12kW	14kW	16kW	20kW
Electric input	DC 3V	DC 3V	DC 3V	DC 3V
Approximate water flow 25℃(with mixer)	6L/min	7L/min	8L/min	10L/min
Chimney diameter (mm)	90	90	90	90
Burner type	harmonica-shape burner(260)	harmonica-shape burner(240)	harmonica-shape burner(260)	harmonica-shape burner(260)
Burner number	3	4	4	5
