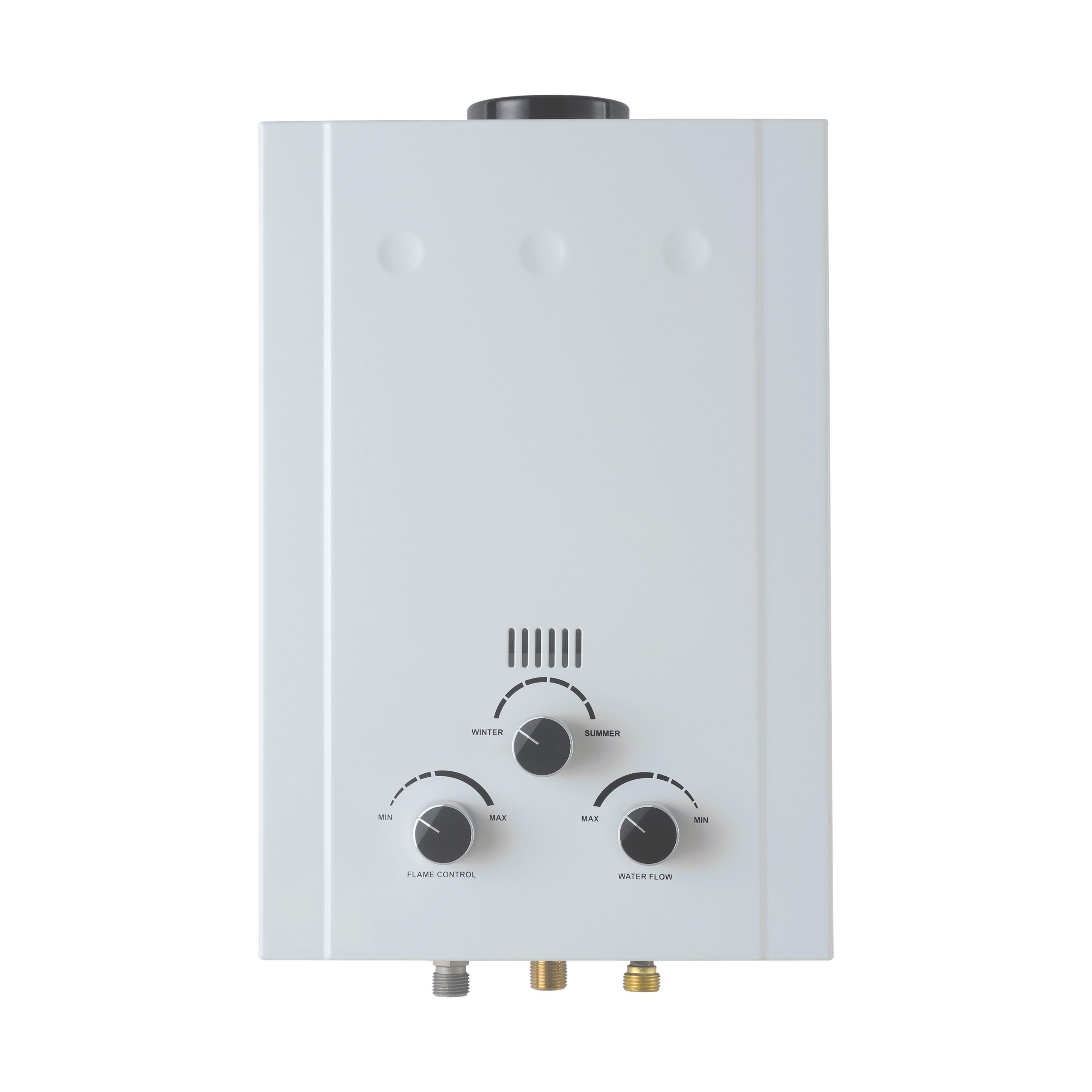

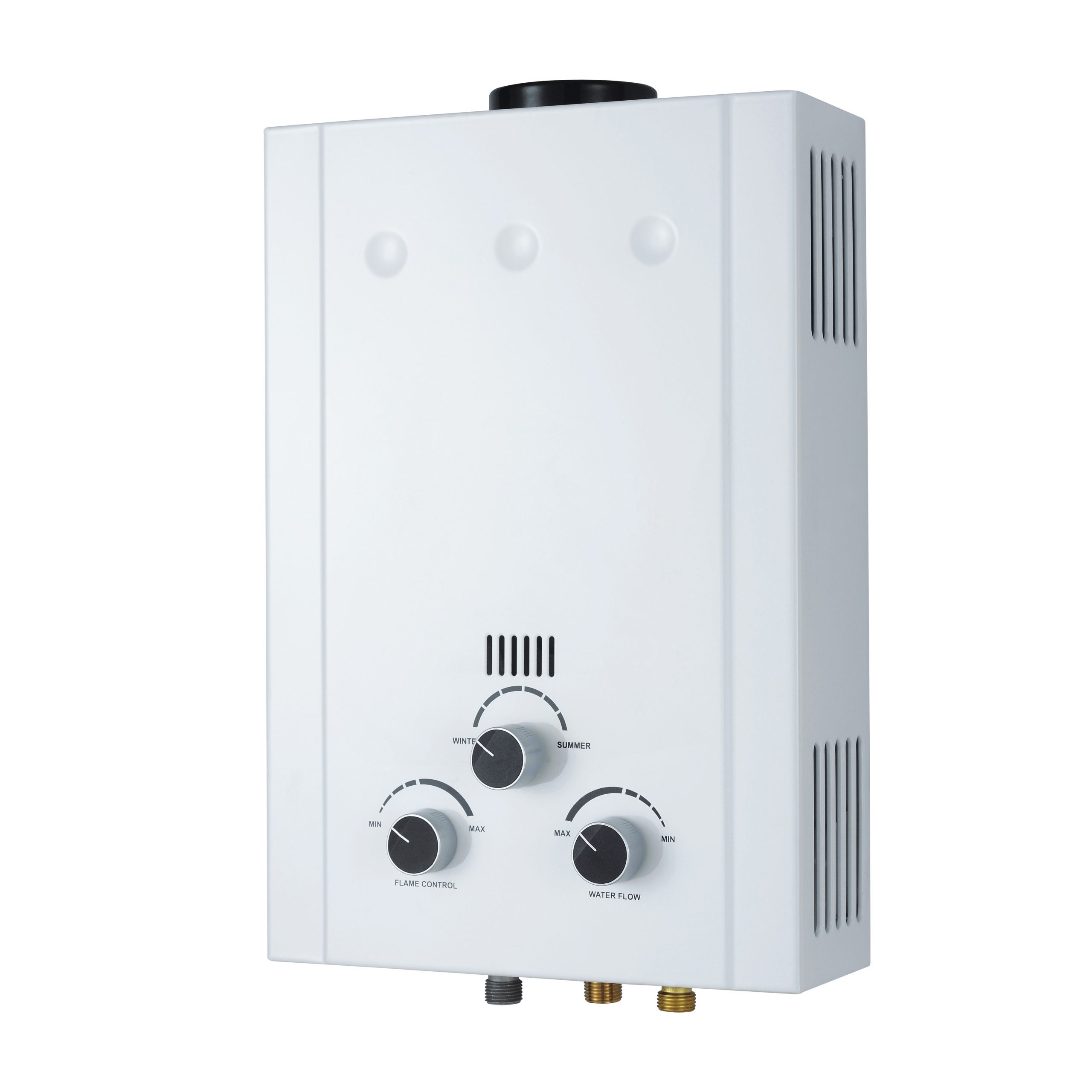

XJ-P 5-10L Natural Exhaust Gas Water Heater With Tin-coated Copper Heat Exchanger

Flue Type Gas Water Heater, Constant Temperature Type Gas Water Heater, Gas Boiler, Water Heater Parts and so on.

XJ-P 5-10L Natural Exhaust Gas Water Heater With Tin-coated Copper Heat Exchanger

The product configuration can be customized meet the certification requirements of different markets

Natural exhaust

Product liter covers 6L~10L

Suitable for low or normal water pressure condition

Suitable for indoor and semi-outdoor environment

Tin-coated or oxygen-free heat exchanger optional

Digital display optional

Knob of winter & summer mode, water flow adjustment optional

Multi-sensors optional

Product Video

Product Details

XJ-P Natural Exhaust With Harmonica-shape Burner
Technical specificationsXJ-P-6LXJ-P-7LXJ-P-8LXJ-P-10L
ExhaustionNaturalNaturalNaturalNatural
Product Dimensions (mm) HxWxD440x300x135520x330x170520x330x170550x300x185
Gas typeNG/LPGNG/LPGNG/LPGNG/LPG
Rated Power Standard Condition (kW)12kW14kW16kW20kW
Electric inputDC 3VDC 3VDC 3VDC 3V
Approximate water flow 25℃(with mixer)6L/min7L/min8L/min10L/min
Chimney diameter (mm)90909090
Burner typeharmonica-shape burner(260)harmonica-shape burner(240)harmonica-shape burner(260)harmonica-shape burner(260)
Burner number3445
